The MIL-DTL-38999 Series 1 connector is a highly reliable and rugged electrical connector designed to meet the demanding requirements of military, aerospace, and industrial applications. Known for its robust construction and superior performance, this connector is engineered to withstand harsh environments and ensure uninterrupted operation in critical systems. One of the standout features of the MIL-DTL-38999 Series 1 is its operating temperature range, which spans from -55°C to +125°C. This wide temperature tolerance makes it ideal for use in extreme conditions, including both frigid cold and intense heat, ensuring consistent performance regardless of environmental challenges.
Featuring an insert arrangement that can accommodate between 13 to 98 contacts, the MIL-DTL-38999 Series 1 offers great flexibility in design and application. For the specific variant discussed here, the connector includes 10 contacts, each capable of handling a current rating of 7.5 amps. This current rating is suitable for a variety of electrical loads, providing reliable power transmission while maintaining signal integrity. The precise arrangement and quality of the contacts guarantee excellent electrical connectivity and minimize the risk of signal loss or interference.
The connector’s shell finish is another critical aspect of its design. The MIL-DTL-38999 Series 1 is finished with Olive Green Cadmium plating, which not only provides a distinctive appearance but also offers superior corrosion resistance and durability. This finish is particularly important in military and aerospace environments where exposure to moisture, salt spray, and other corrosive elements is common. The Olive Green Cadmium coating helps protect the connector from environmental degradation, thereby extending its service life and reliability.
One of the key mechanical features of the MIL-DTL-38999 Series 1 connector is its bayonet coupling mechanism. The bayonet coupling provides a quick, secure, and positive locking system that ensures the connector remains firmly mated during operation, even in high-vibration or shock-prone environments. This coupling system allows for fast and easy mating and unmating without the need for additional tools, enhancing maintenance efficiency and reducing downtime.
The connector is available in a square flange receptacle configuration, which offers secure mounting options and mechanical stability. The square flange receptacle design facilitates straightforward panel mounting and provides a robust interface for the mating connector. This mounting style is widely preferred in applications where vibration resistance and connector retention are paramount, ensuring that the connection remains intact under rigorous conditions.
Overall, the MIL-DTL-38999 Series 1 connector with its 10 contacts, 7.5 A current rating, and Olive Green Cadmium shell finish represents a high-performance solution for applications requiring dependable electrical connections in extreme environments. Its bayonet coupling and square flange receptacle design contribute to its ease of use and mechanical reliability, making it a preferred choice for military and aerospace systems. Whether used in avionics, ground vehicles, or industrial equipment, this connector is engineered to provide exceptional durability, environmental resistance, and electrical integrity, meeting stringent industry standards and enhancing system performance.
| Product Name | MIL-DTL-38999 Series Ⅰ |
| Connector Type | Circular |
| Insert Arrangement | 13-98 |
| Shell Size | 13 |
| Number of Contacts | 10 |
| Contact Material | Copper Alloy |
| Voltage Rating | 500V |
| Current Rating | 7.5 A |
| Operating Temperature | -55°C To +125°C |
| Gender | Square Flange Receptacle |
| Finish | Olive Green Cadmium |

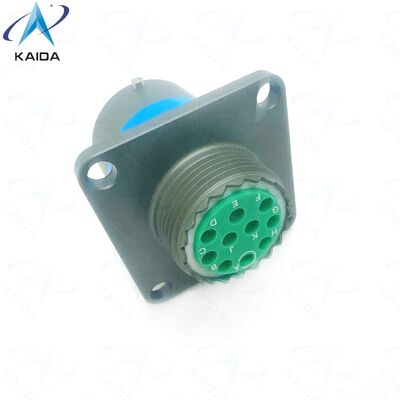

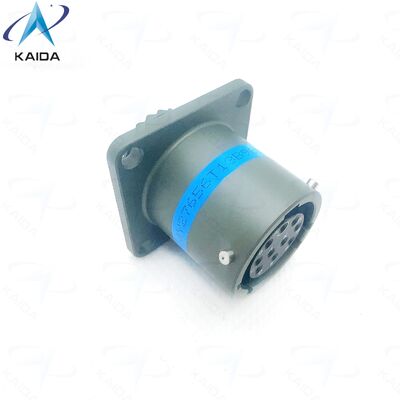

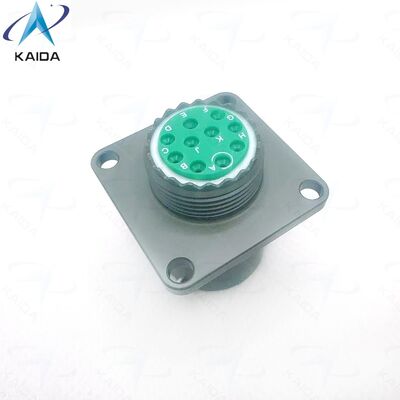

The KAIDA MIL-DTL-38999 Series Ⅰ connector, model number MS27656T13B98SN, is a high-performance circular connector designed to meet the rigorous demands of military, aerospace, and industrial applications. Originating from China, this product is engineered with a robust square flange receptacle that ensures secure and reliable connections in critical environments. The MS27656 series is well-known for its durability and superior electrical performance, making it an ideal choice for harsh conditions.
With an insert arrangement of 13-98 and 10 contacts, this connector provides a compact yet efficient solution for complex wiring requirements. Its circular connector type is versatile and widely used in a variety of applications where space constraints and high reliability are crucial. The voltage rating of 500V further enhances its suitability for high-power systems, ensuring stable electrical transmission without compromise.
The MIL-DTL-38999 Series Ⅰ connectors, such as the MS27656T13B98SN, are frequently employed in aerospace avionics, military ground vehicles, and naval systems. The square flange receptacle design facilitates easy mounting and maintenance, making it a preferred choice for installations where quick replacement or servicing is necessary. This connector is also commonly used in industrial automation and control systems, where environmental resistance and electrical integrity are critical.
In addition to its robust mechanical and electrical features, the KAIDA MIL-DTL-38999 Series Ⅰ connector offers excellent resistance to corrosion, vibration, and extreme temperatures. These attributes make it suitable for outdoor and extreme environment scenarios, including defense communication equipment, radar systems, and tactical electronics. The MS27656 square flange receptacle variant is especially valued for its secure locking mechanism, which prevents accidental disconnections in dynamic operational conditions.
Overall, the KAIDA MS27656T13B98SN MIL-DTL-38999 Series Ⅰ connector is a reliable solution for applications requiring high durability, electrical performance, and ease of installation. Its combination of a square flange receptacle, circular connector design, and a robust 10-contact layout makes it a versatile choice across various demanding industries.
KAIDA offers product customization services for the MIL-DTL-38999 Series Ⅰ connectors, specifically the MS27656T13B98SN model. This high-quality connector, originating from China, features a durable copper alloy contact material ensuring excellent conductivity and reliability. Designed as a square flange receptacle with a shell size of 13, it supports a current rating of 7.5 A, making it suitable for demanding applications.
The MS27656 model incorporates a bayonet coupling mechanism, providing secure and quick mating and unmating under various operational conditions. It operates efficiently within a wide temperature range from -55°C to +125°C, ensuring performance stability in extreme environments. KAIDA’s customization services allow tailoring the MIL-DTL-38999 Series Ⅰ connectors to meet specific requirements, delivering robust and reliable connectivity solutions.
Product Technical Support and Services for the MIL-DTL-38999 Series 1 connectors include comprehensive assistance to ensure optimal performance and reliability in demanding applications. Our support covers product selection guidance, installation procedures, maintenance recommendations, and troubleshooting techniques tailored to the unique requirements of MIL-DTL-38999 Series 1 connectors.
We provide detailed technical documentation, including datasheets, assembly instructions, and qualification test reports, to facilitate proper use and integration of the connectors. Our engineering team is available to offer expert advice on customization options, compatibility with various cable types, and environmental considerations.
Additionally, our services encompass repair and refurbishment programs to extend the lifecycle of your connectors, as well as training sessions designed to enhance your team’s proficiency in handling and maintaining MIL-DTL-38999 Series 1 products. Through these dedicated support and service offerings, we aim to ensure your operational success and satisfaction with our high-performance connector solutions.
The MIL-DTL-38999 Series 1 connectors are packaged to ensure protection against contamination, damage, and environmental factors during storage and transportation. Each connector is individually sealed in a protective bag or sleeve to prevent ingress of dust, moisture, and other contaminants.
For shipping, connectors are placed in sturdy, impact-resistant containers designed to withstand rough handling. Packaging materials such as foam inserts or cushioning are used to secure the connectors and prevent movement within the container. All packages are clearly labeled with part numbers, batch codes, and handling instructions to facilitate identification and proper handling.
Compliance with applicable military and commercial shipping standards is maintained to ensure that the MIL-DTL-38999 Series 1 connectors arrive at their destination in optimal condition, ready for immediate use.
Q1: What is the brand and model number of the MIL-DTL-38999 Series 1 connector?
A1: The connector is branded KAIDA, and the model number is MS27656T13B98SN.
Q2: Where is the KAIDA MIL-DTL-38999 Series 1 connector manufactured?
A2: This connector is manufactured in China.
Q3: What type of applications is the KAIDA MS27656T13B98SN connector suitable for?
A3: The MIL-DTL-38999 Series 1 connectors are ideal for military, aerospace, and other harsh environment applications requiring high reliability and durability.
Q4: What are the key features of the KAIDA MIL-DTL-38999 Series 1 connector?
A4: Key features include high-density contact arrangements, resistance to vibration and corrosion, quick coupling mechanism, and compliance with MIL-DTL-38999 Series 1 specifications.
Q5: Can the KAIDA MS27656T13B98SN connector be used in high-temperature environments?
A5: Yes, the KAIDA MIL-DTL-38999 Series 1 connectors are designed to operate reliably in a wide range of temperatures, making them suitable for high-temperature environments.
